LED DRIVERS

LED drivers regulate voltage, current, power, and load—ensuring efficiency, dimming, flicker-free output, and protection from surges, heat, and overvoltage in AC/DC circuits for reliable LED performance.

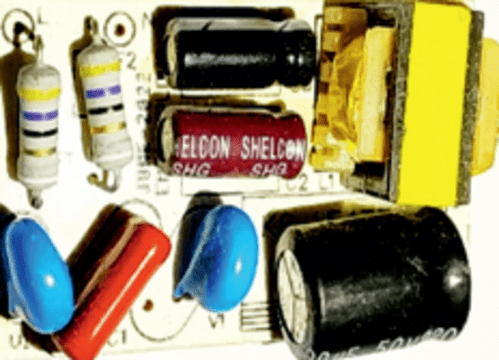

12Watt Panel

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 36V - 300mA ± 5%

Surge →

4KV

Efficiency→

88%

Power Factor→

0.97

Dimension mm →

42 X 27 X 14

Get Quote

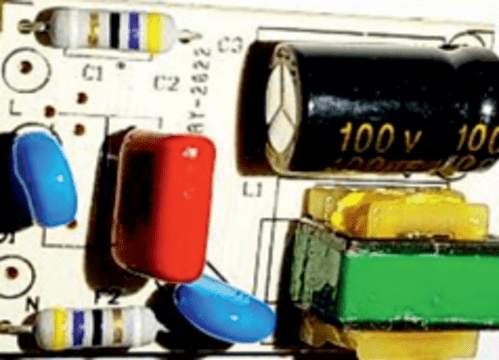

15Watt Panel

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63 - 75V/220mA ± 5%

Surge →

4KV

Efficiency→

88%

Power Factor→

0.99

Dimension mm →

39 X 29 X 14

Get Quote

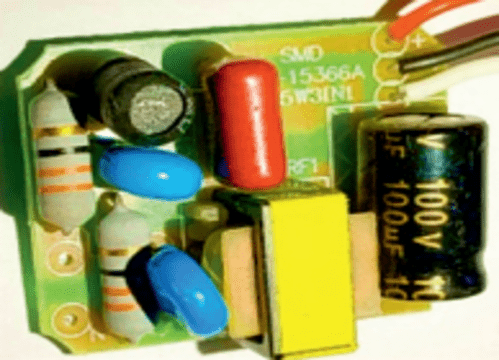

(3 in 1)15Watt Panel

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63 - 72V/220mA ± 5%

Surge →

4KV

Efficiency→

89%

Power Factor→

0.98

Dimension mm →

36 X 29 X 14

Get Quote

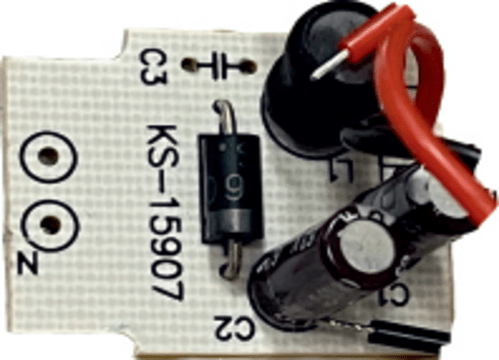

9Watts DC to DC Driver

Specifications :

Input Voltage →

AC/DC 12 to 24V

O/P Voltage & Current →

12V / 650mA ± 5%

Surge →

2.5KV

Efficiency→

95%

Power Factor→

0.65

Dimension mm →

25 X 21 X 16

Get Quote

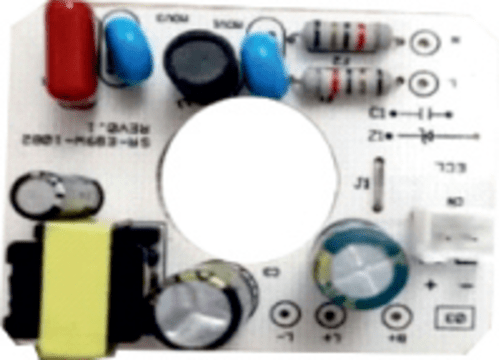

9Watt Emergency AC/DC Bulb

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 36 - 84V/95mA ± 5%

Surge →

4KV

Efficiency→

85%

Power Factor→

0.99

Dimension mm →

50 X 41 X 17

Get Quote

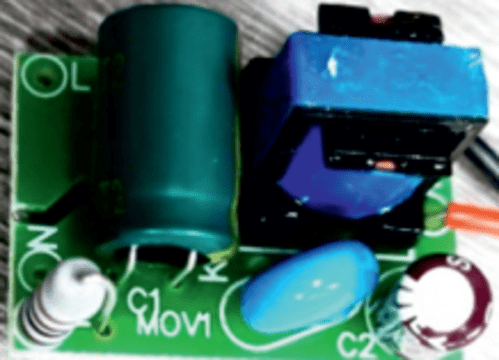

4-5Watt COB Spot & Deep Light

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 45 - 63V/75mA ± 5%

Surge →

2.5KV

Efficiency→

85%

Power Factor→

0.65

Dimension mm →

28 X 19 X 15

Get Quote

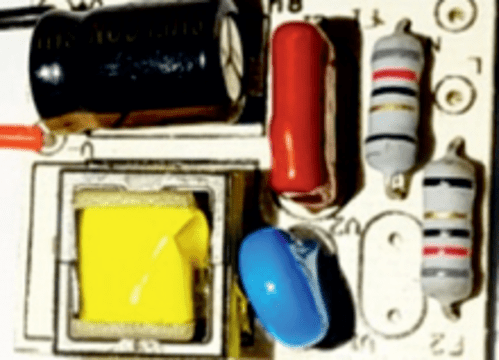

7-9Watt All Conceled & COB Spot Light

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63 - 90V/90mA ± 5%

Surge →

4KV

Efficiency→

87%

Power Factor→

0.99

Dimension mm →

30 X 25 X 14

Get Quote

8Watt Panel 3in1 and Conceal Driver

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P 66 - 72V/105mA ± 5%

Surge →

4KV

Efficiency→

89%

Power Factor→

0.99

Dimension mm →

30 X 16 X 25

Get Quote

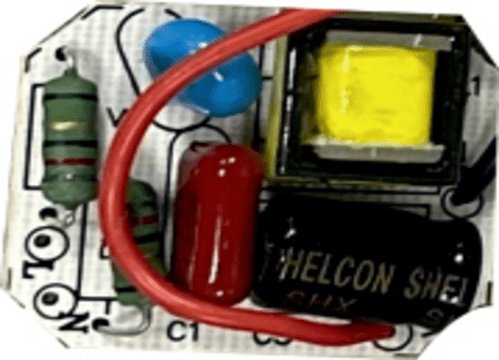

8Watt Twister Surface

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 60V/120mA ± 5%

Surge →

4KV

Efficiency→

91%

Power Factor→

0.99

Dimension mm →

35 X 29 X 14

Get Quote

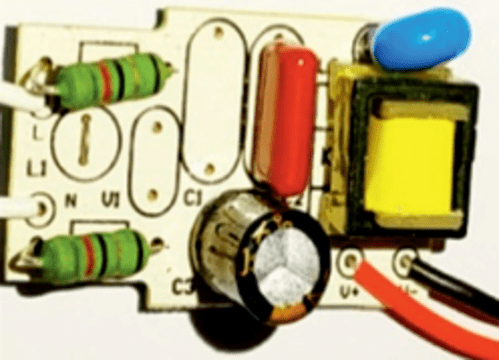

7,8,9Watt Bulb

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63 - 90V/90mA ± 5%

Surge →

4KV

Efficiency→

84%

Power Factor→

0.99

Dimension mm →

38 X 23 X 14

Get Quote

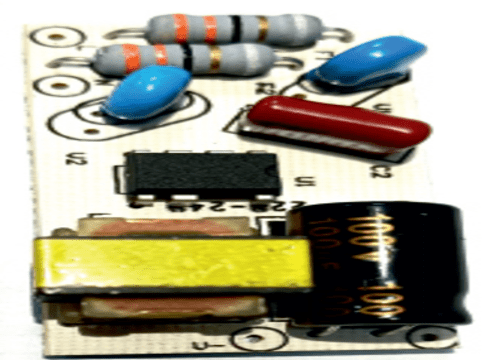

22Watt Panel PC

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63 - 72V/280mA ± 5%

Surge →

4KV

Efficiency→

90%

Power Factor→

0.99

Dimension mm →

51 X 26 X 15

Get Quote

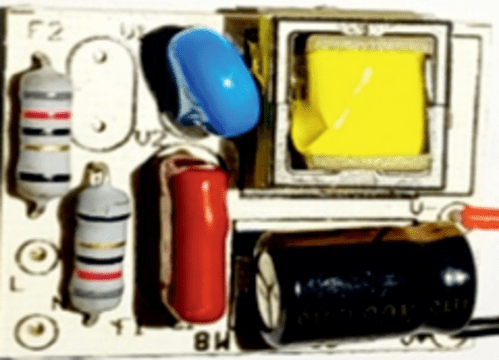

8Watt Panel PC

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 60V/120mA ± 5%

Surge →

4KV

Efficiency→

87%

Power Factor→

0.99

Dimension mm →

30 X 25 X 14

Get Quote

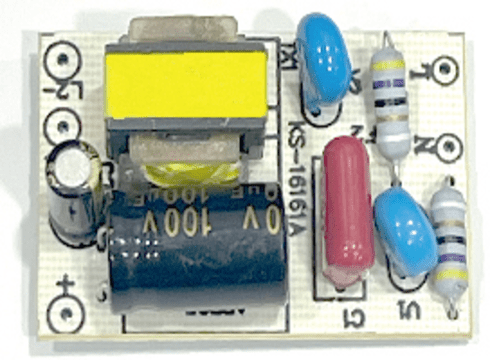

20Watt 3in1 Panel Driver

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P AC / DC 66 - 72V/265mA ± 5%

Surge →

4KV

Efficiency→

89%

Power Factor→

0.99

Dimension mm →

41 X 16 X 27

Get Quote

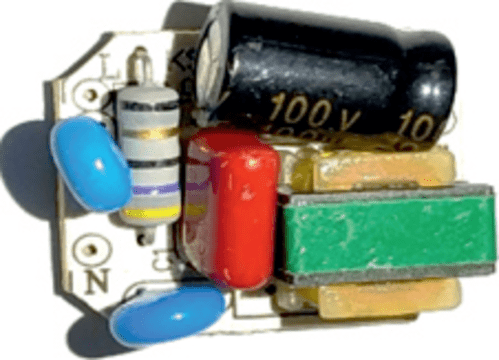

15Watt Twister Surface

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63 - 75V/160mA ± 5%

Surge →

4KV

Efficiency→

89%

Power Factor→

0.99

Dimension mm →

29 X 25 X 14

Get Quote

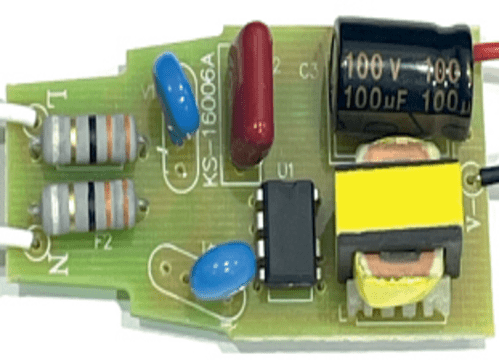

18-20Watt Bulb

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 63-72V/270mA ± 5%

Surge →

4KV

Efficiency→

91%

Power Factor→

0.99

Dimension mm →

58 X 16 X 29

Get Quote

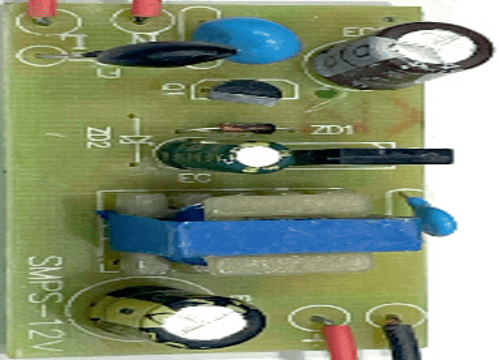

Led Strip Driver

Specifications :

Input Voltage →

AC 90 to 300 V

O/P Voltage & Current →

O/P DC 12V/550mA ± 5%

Surge →

2.5KV

Efficiency→

62%

Power Factor→

0.99

Dimension mm →

56 X 18 X 29

Get Quote
